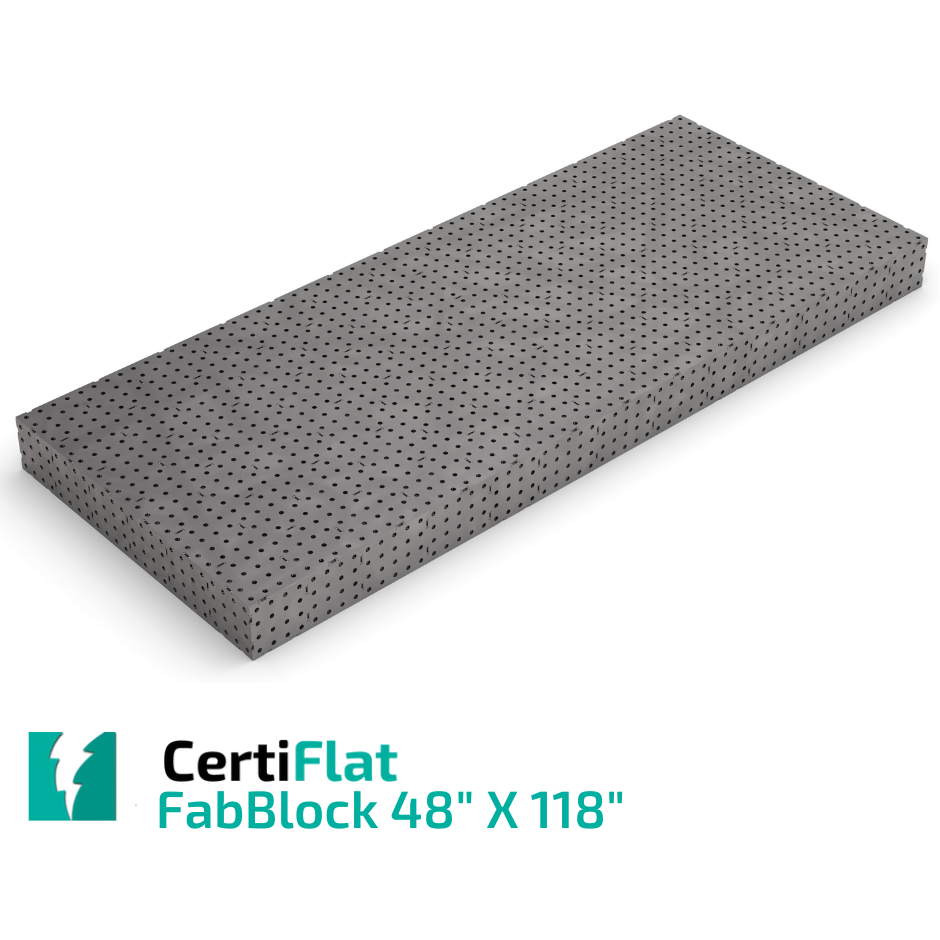

FB48118 U-Weld Kit Modular Welding Table Kit 48"X118" FabBlock

$ 2,899.99

SKU: FB48118-U


Quantity:
+

easy to build scroll down

NOTE: fabRack leg and caster kits sold separately. See bottom of page.

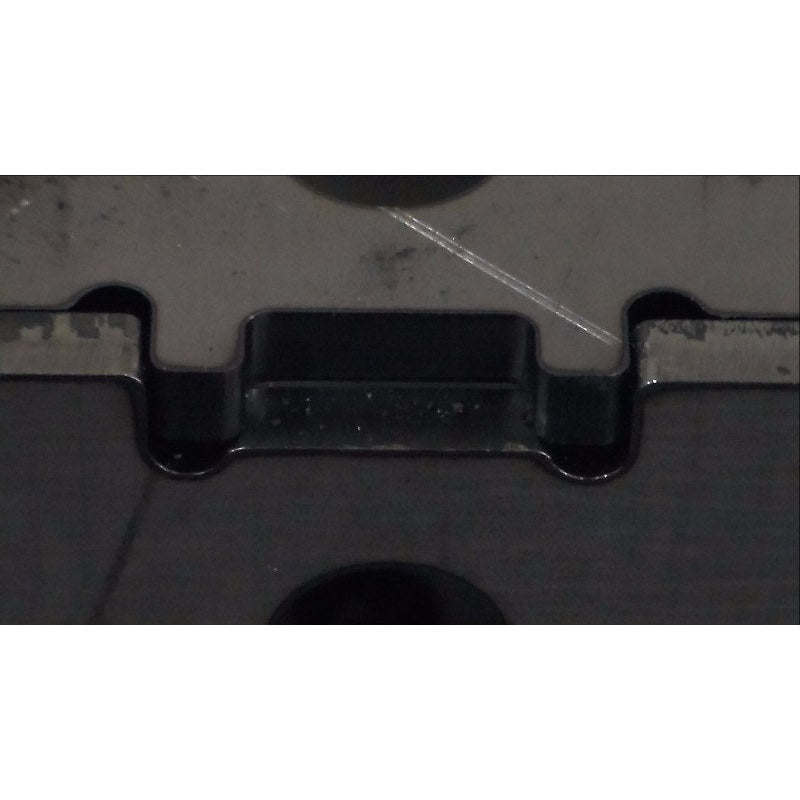

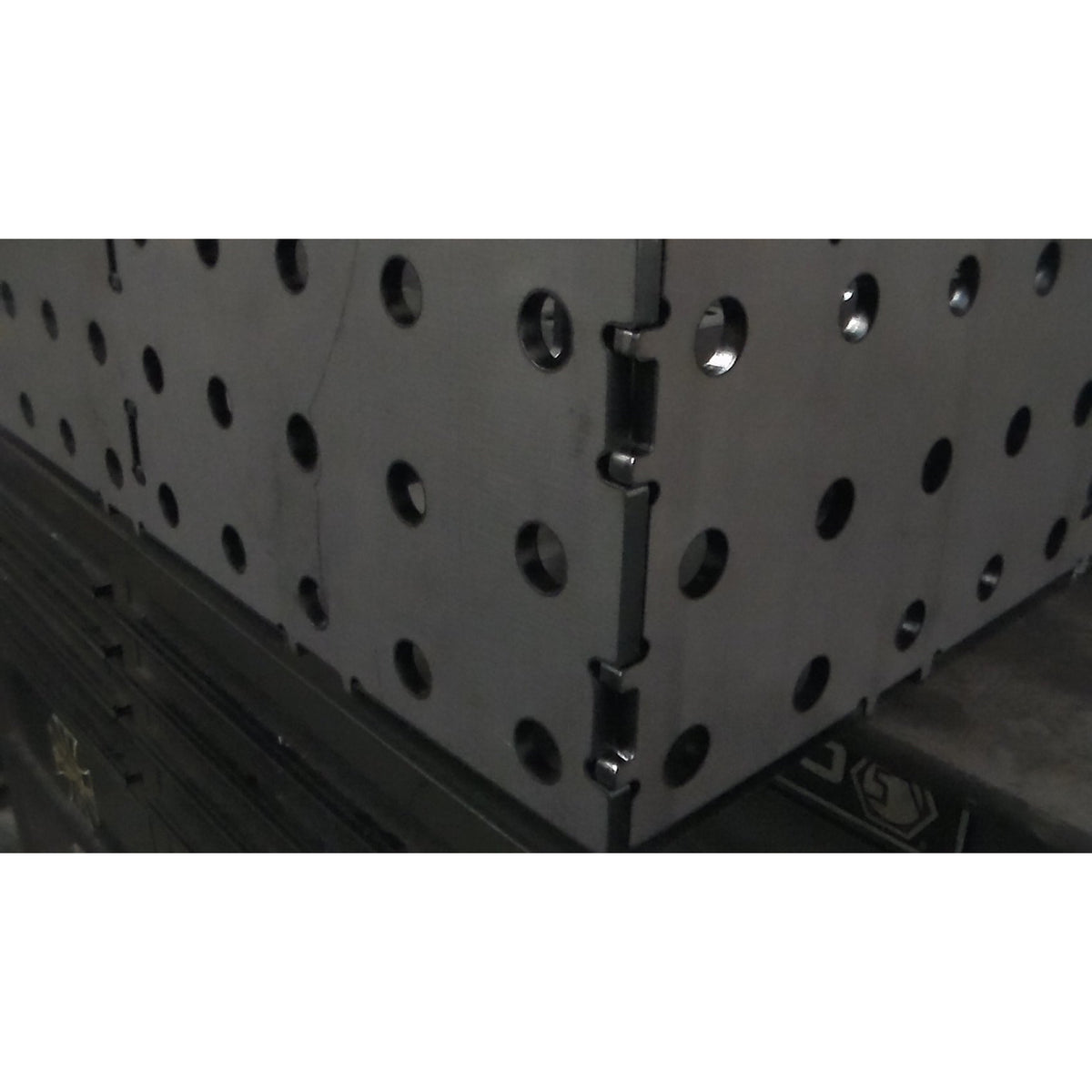

CertiFlat's new fabBlocks are the ultimate welding table system. Designed using the same Tab and Slot methodology that we've been proving in the field for over 10 years. Like all of our build it yourself U-Weld kits, fabBlocks assemble easily as our proprietary features insure accuracy and parallelism. Completely modular across all part numbers & sizes. All fabBlock incorporate the industry standard 16MM hole pattern as standard for easy access to clamps and tooling. Optional threaded holes are available as well.

FB48118 FEATURE LIST:

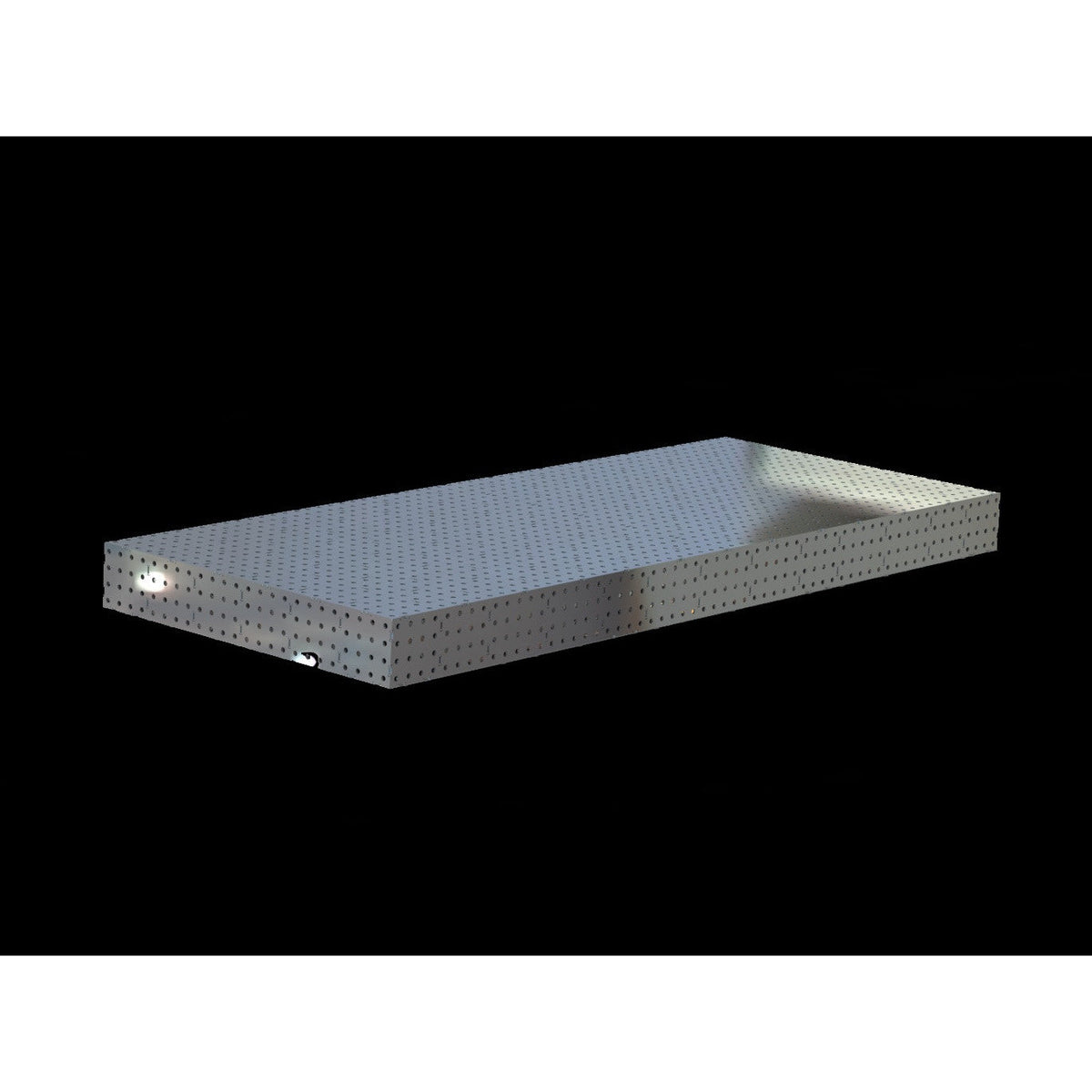

  • DIMENSIONS: 48" x 118" x 6"

  • 1/4" HIGH STRENGTH HRPO STEEL PLATE (OPTIONAL 3/8" & 1/2")

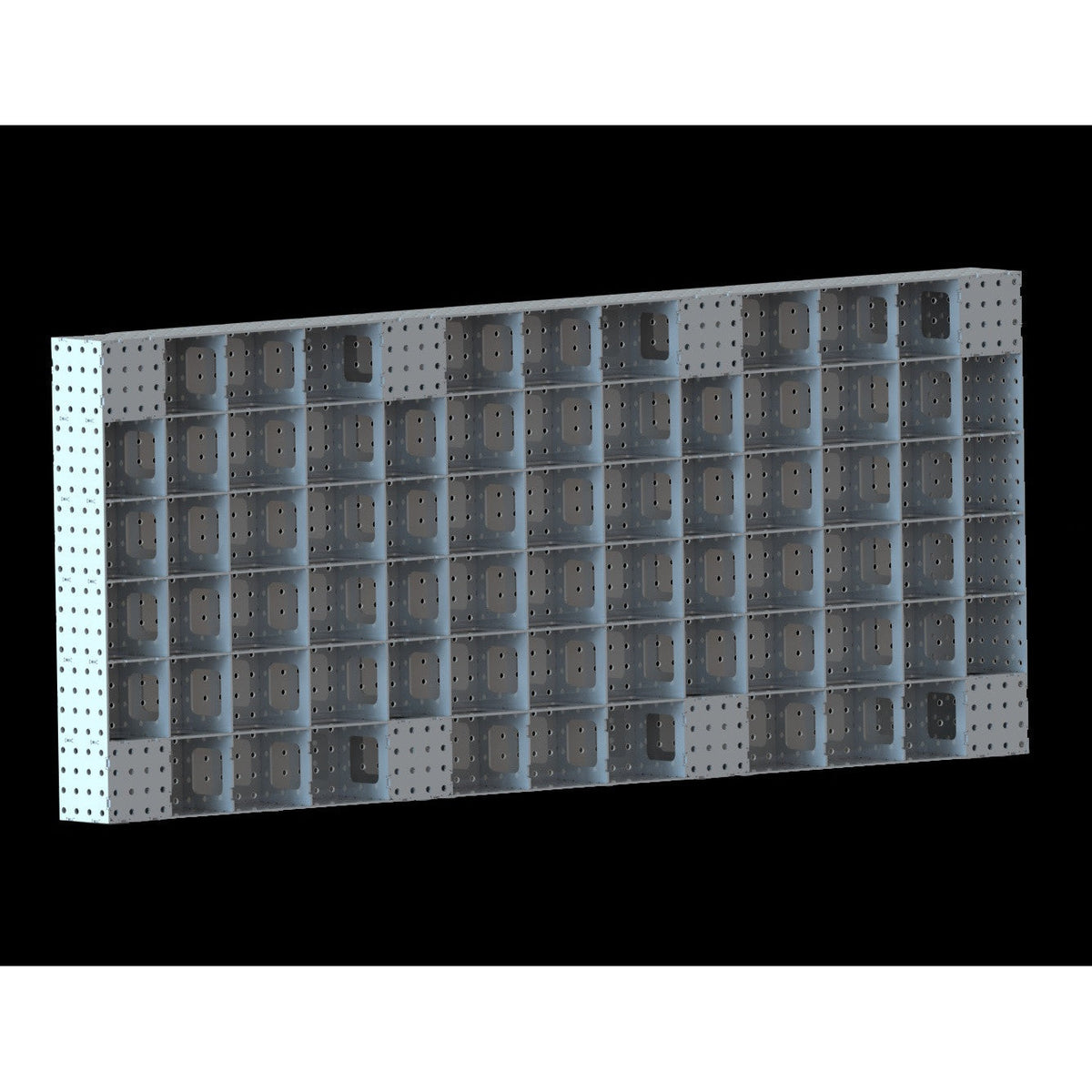

  • EIGHT LEG MOUNTING POINTS ON UNDERSIDE

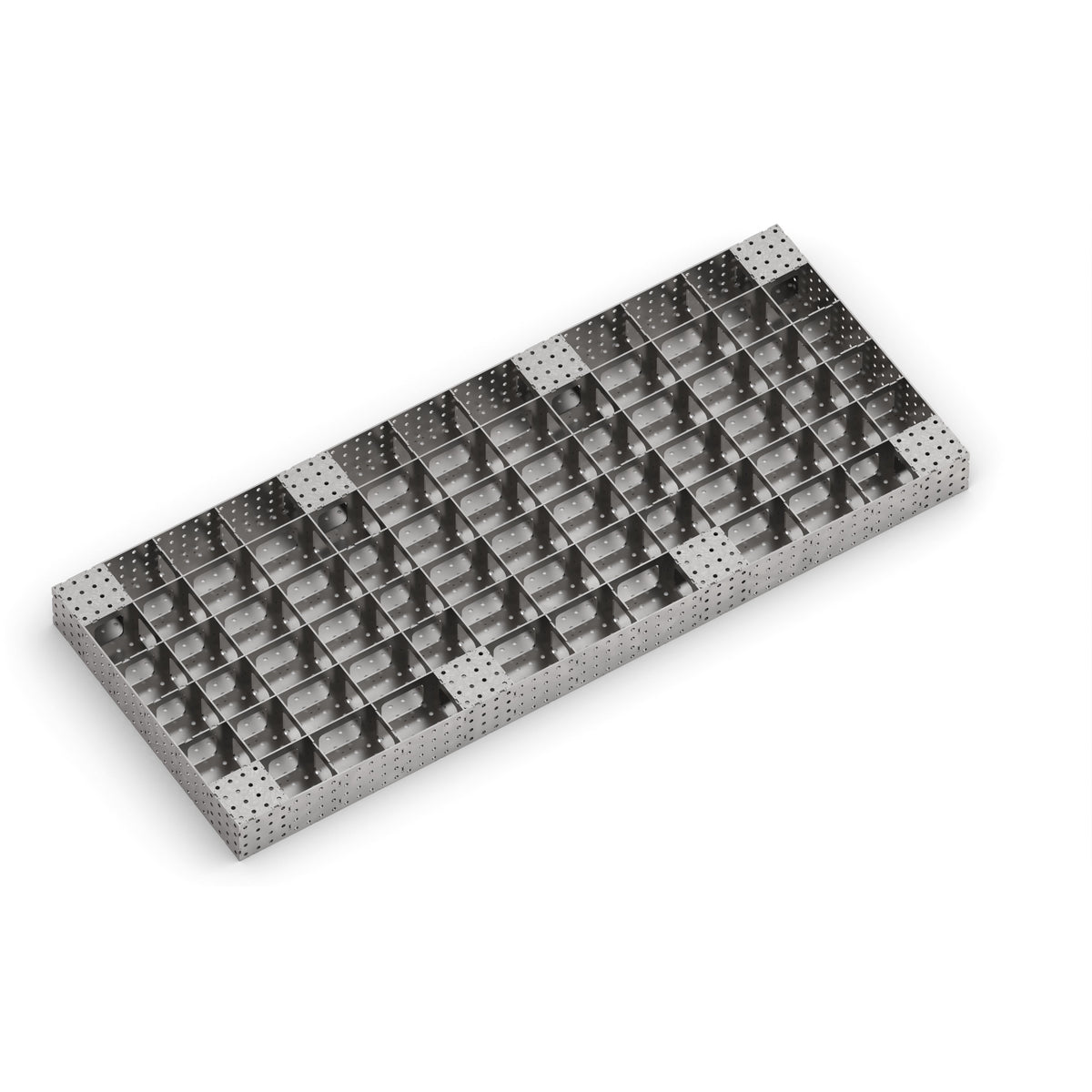

  • ENGINEERED TAB & SLOT STIFFENING RIBS FOR A GUARANTEED FLAT SURFACE.

  • PROPRIETARY "HEAT CONTROL DESIGN" TO ELIMINATE WARPING DURING ASSEMBLY.

  • +/- .003" ON ALL PARTS INCLUDED WITH YOUR KIT. VERY HIGH PRECISION.

  • WORKING SURFACES ON 6 SIDES FOR UNLIMITED CONFIGURATIONS

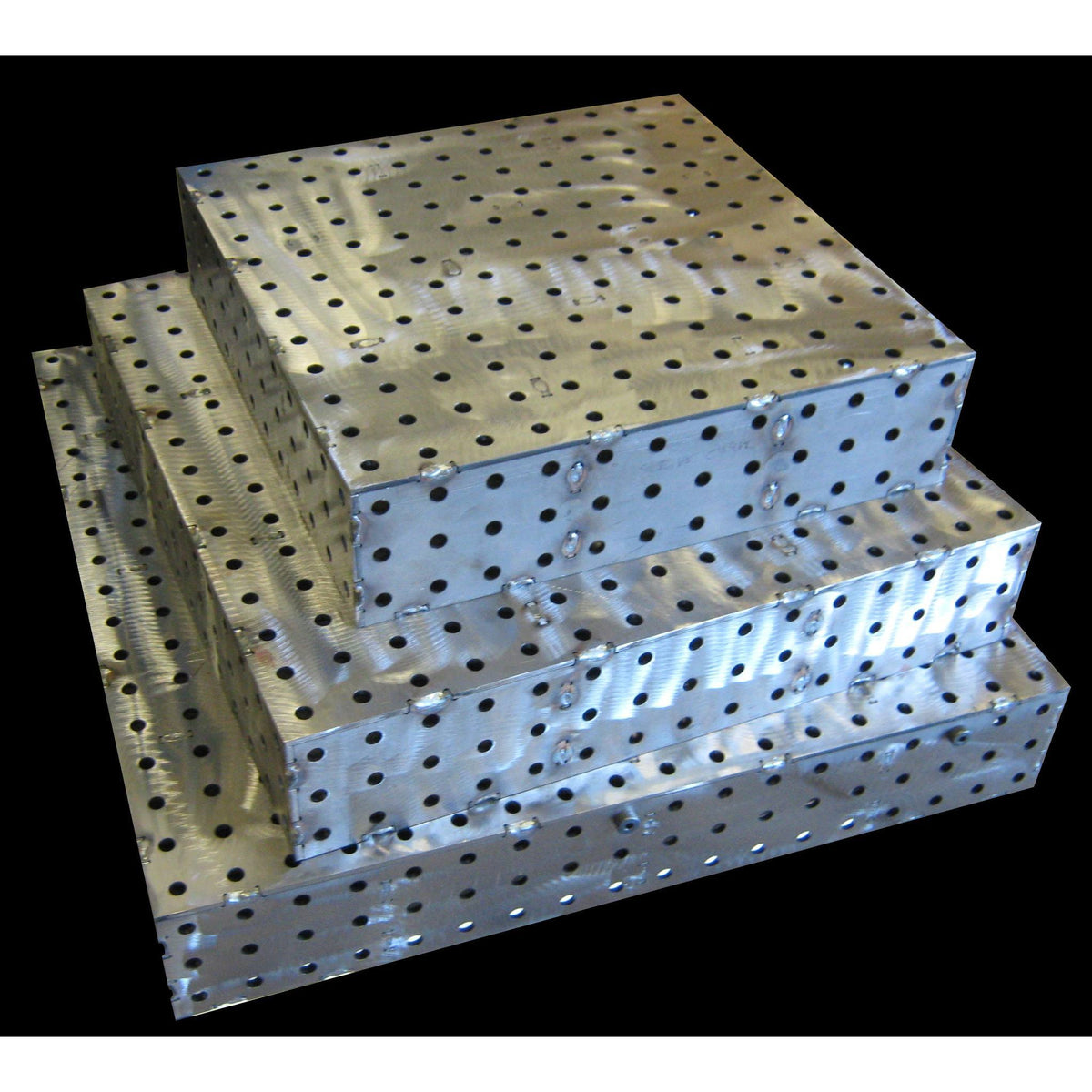

  • MODULAR DESIGN WITH COMMON HOLE SPACING.

  • 16MM HOLES ON 2" CENTERS WORK WITH INDUSTRY STANDARD 16MM & 5/8" TOOLS. OPTIONAL THREADED HOLES AND 28MM AVAILABLE

  • CNC LASER CUTTING OF ALL COMPONENTS. OUR PARTS FIT!

  • NO QUESTIONS ASKED REFUND POLICY. IF YOU'RE NOT HAPPY, WE'RE NOT HAPPY.

  • FLAT! TO +/- .015" IS NO PROBLEM IF CARE IS USED DURING ASSEMBLY!

All FabBlocks come standard in 1/4" Thick material with Industry Standard 16MM Tooling holes on 2" centers. We offer Two Optional Thicknesses and Two Optional Hole Configurations.  1/4" thick material comes standard but you can also order with 3/8" and 1/2" thick for a nominal charge. We also offer FabBlocks with holes theaded...

All 1/4" thick tables can be had with holes threaded 3/8"-16 & 1/2" and 3/8" thick tables are available with 1/2"-13 threaded holes. Either are available in ALL THREADED HOLES -or- EVERY OTHER HOLE (where every other hole is a 16MM.)

We went back and looked at the last hundred welding fixtures fixtures, that we'd built for most of the country's ATV market; searching for efficiency. We noticed that every fixture we did had one thing in common, they were all wasting crazy amounts of material! Let me explain...

 As mentioned elsewhere, we build a ton of these Tab and Slot weld fixtures. Over 50 for one company last year! Every one of them had this big, heavy base plate on it.

Imagine if that could be eliminated? It would an average of $1000/fixture in design and steel. That's Big! So we started looking at ways to save costs, make the design process faster and reduce shop time during assembly. This is when the light bulb went on. If our customers had a nice flat 'block' with a standard hole pattern covering it we could just design and send them 'plug-in' fixtures. Now this same technology is available to you in U-Weld kits!

Like everything we manufacture from our line of accessories to our welding tables, fabBlocks are no different. By giving you the opportunity to invest your time and craftsmanship into your new tool. We can sell you a Production Quality Part at Hobbiest Prices. After all, you're a welder-go weld something!
