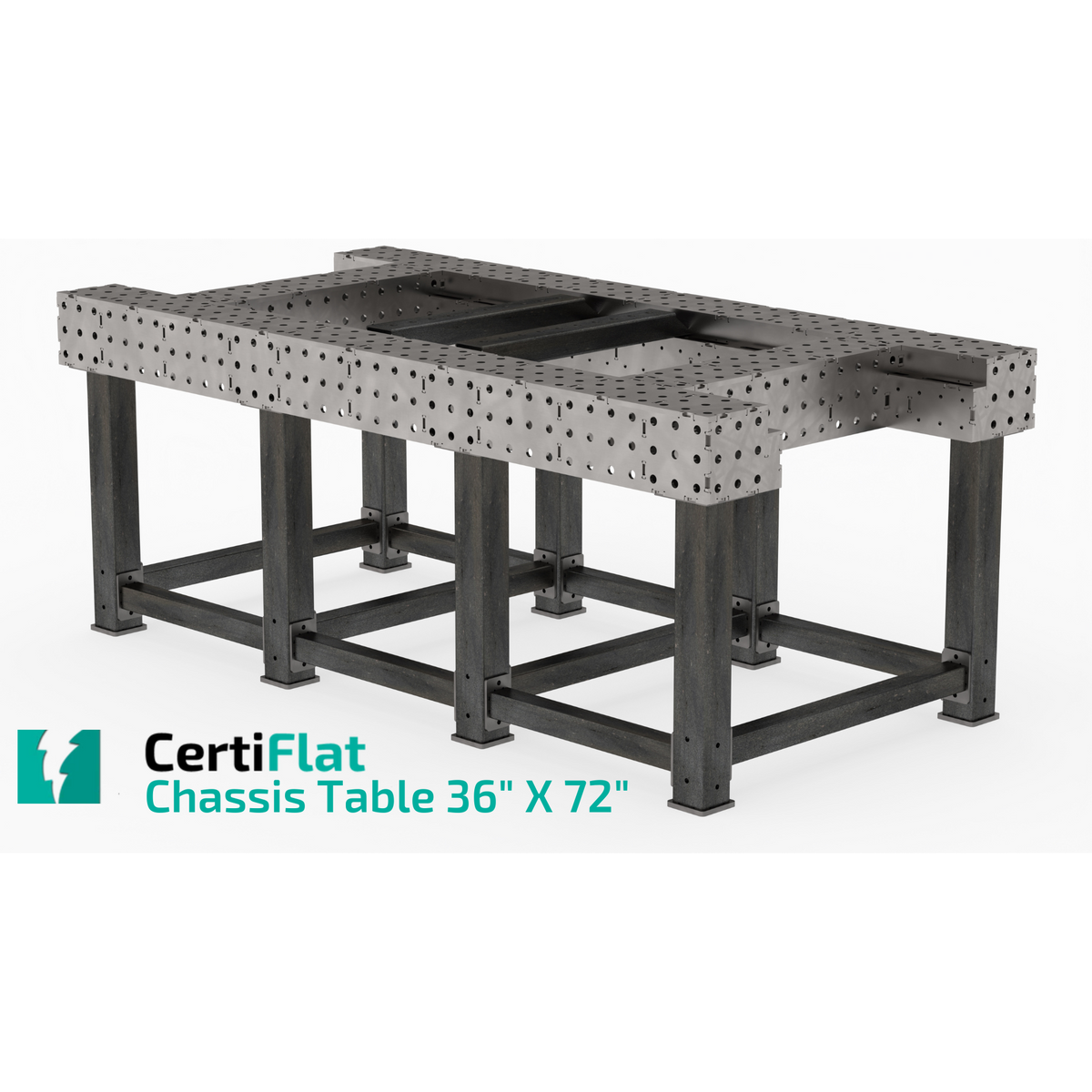

CertiFlat Chassis Table 36" x 72"

$ 3,200.00

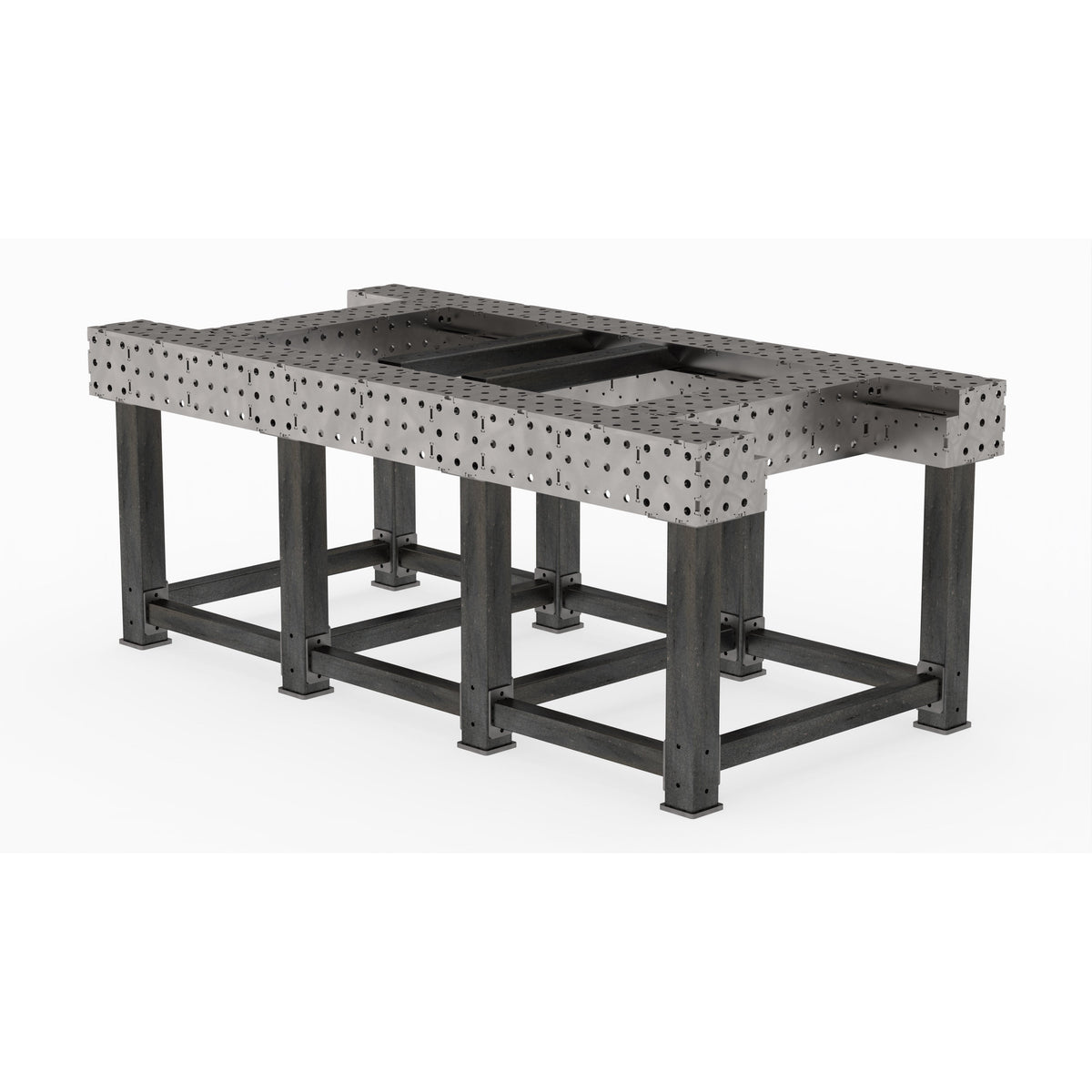

WeldTables.com Chassis Tables are the perfect fixture table for building large frames. From automotive to machine frames, our chassis jigs are highly configurable. With large open centers and long straight rails, these tables are perfect for this type of work.

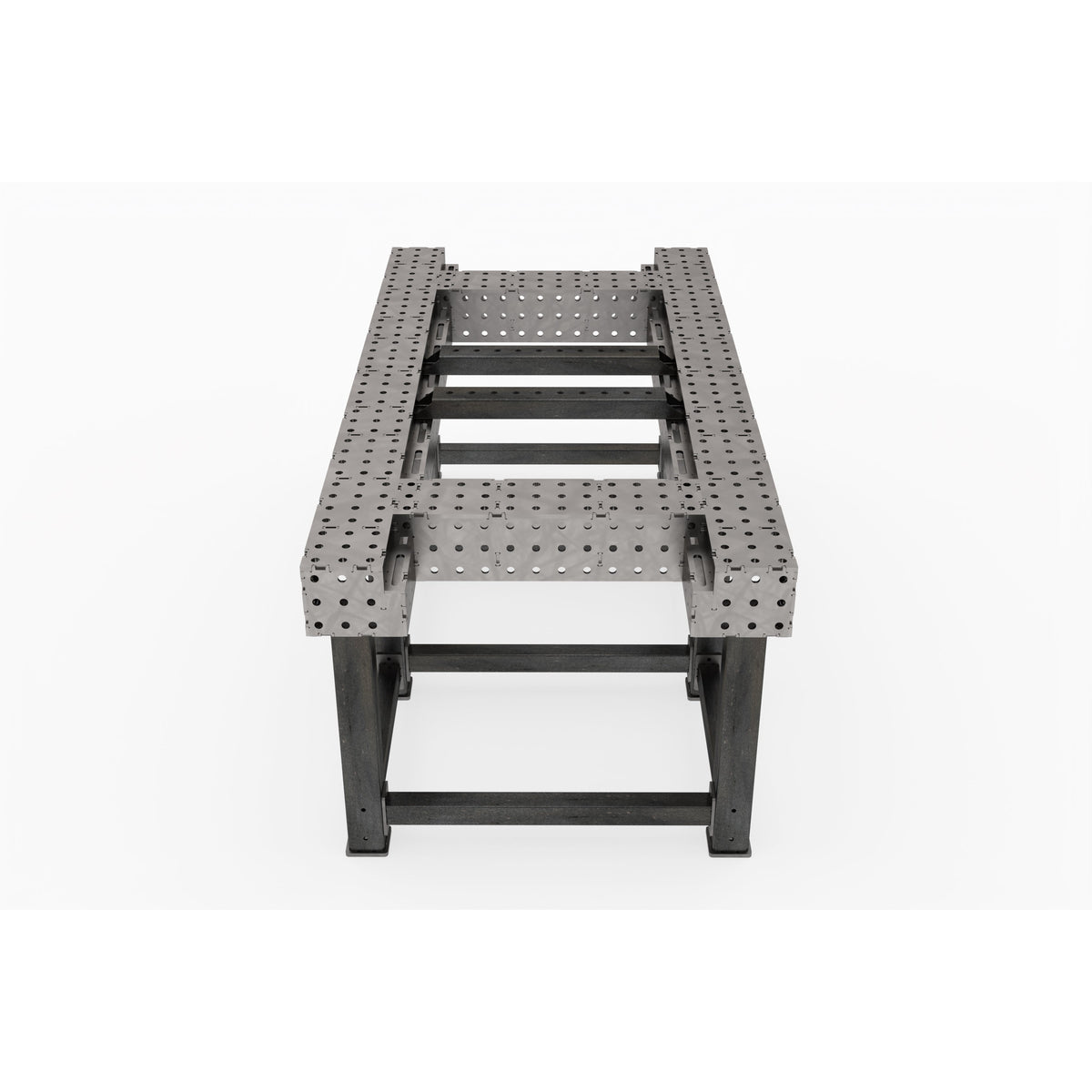

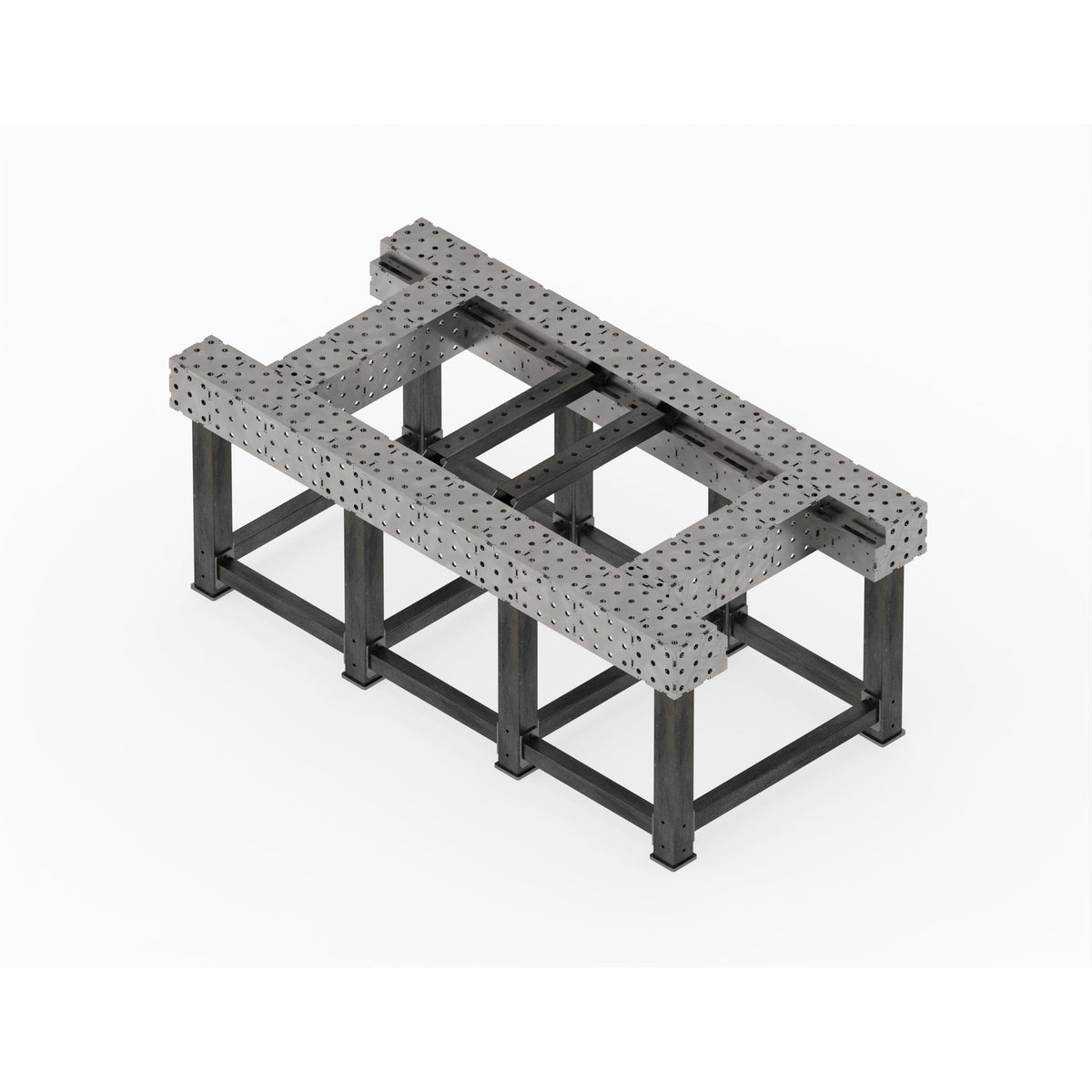

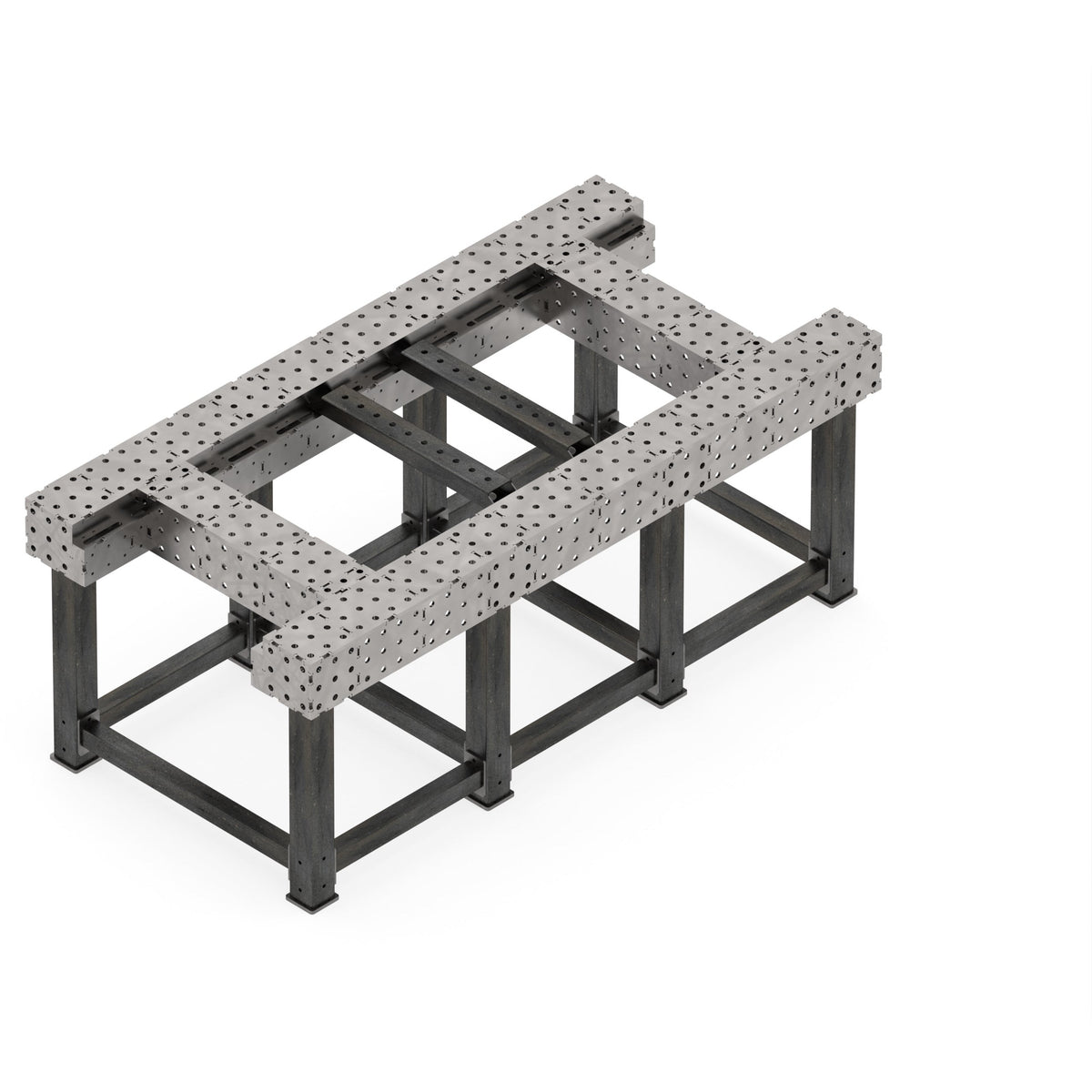

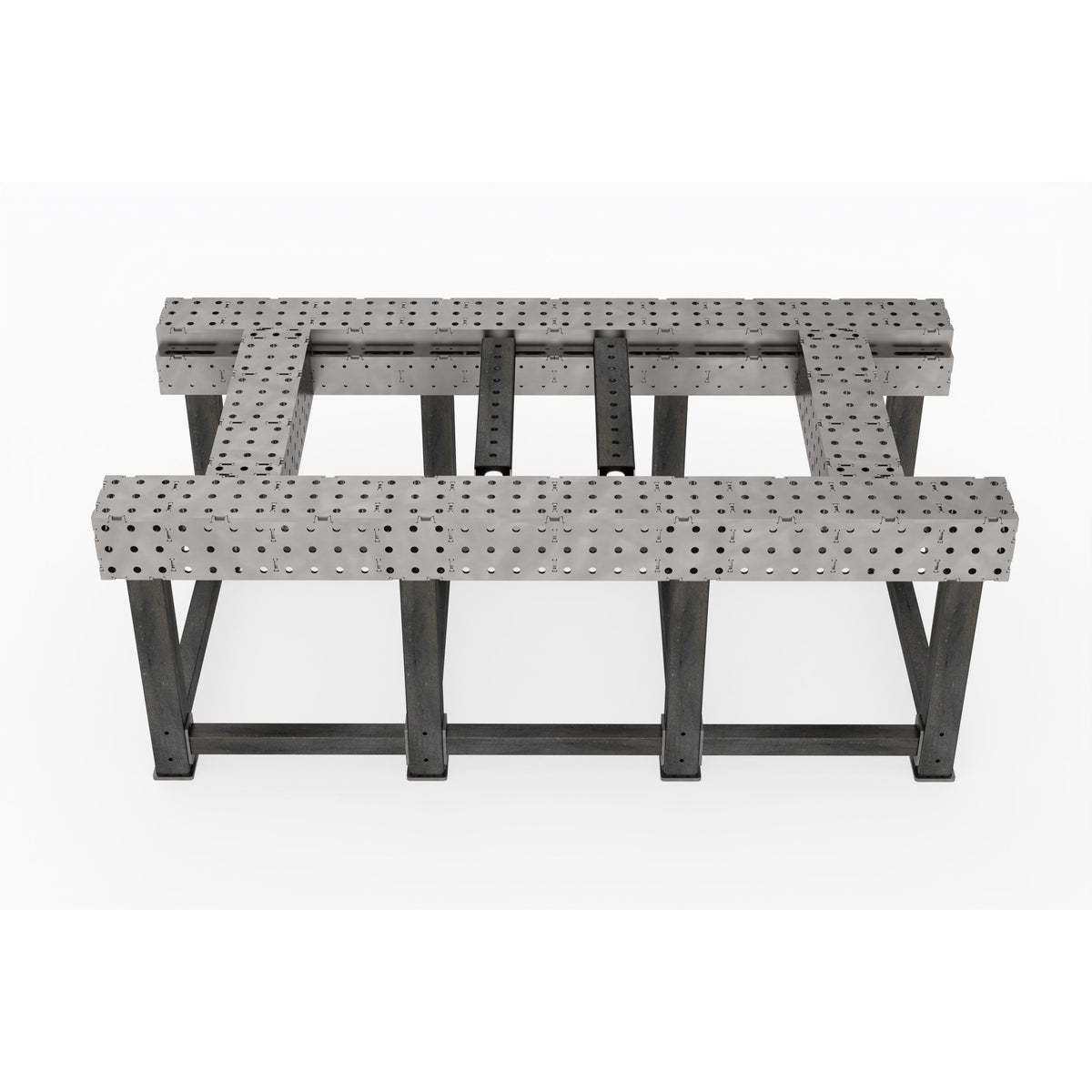

Each Chassis table features 2 "long rails" with 16mm holes on 2-inch centers throughout for use with standard clamps and accessories. The top surfaces are 6 inches wide and 3/8" thick which allows for setups and clamping of most frames. The long rails also feature a cross bar ledge that allows for infinite placement of the short cross rails. Once the short rails are bolted in this makes for an extremely rigid assembly. By using this configuration, virtually any frame can be accommodated.

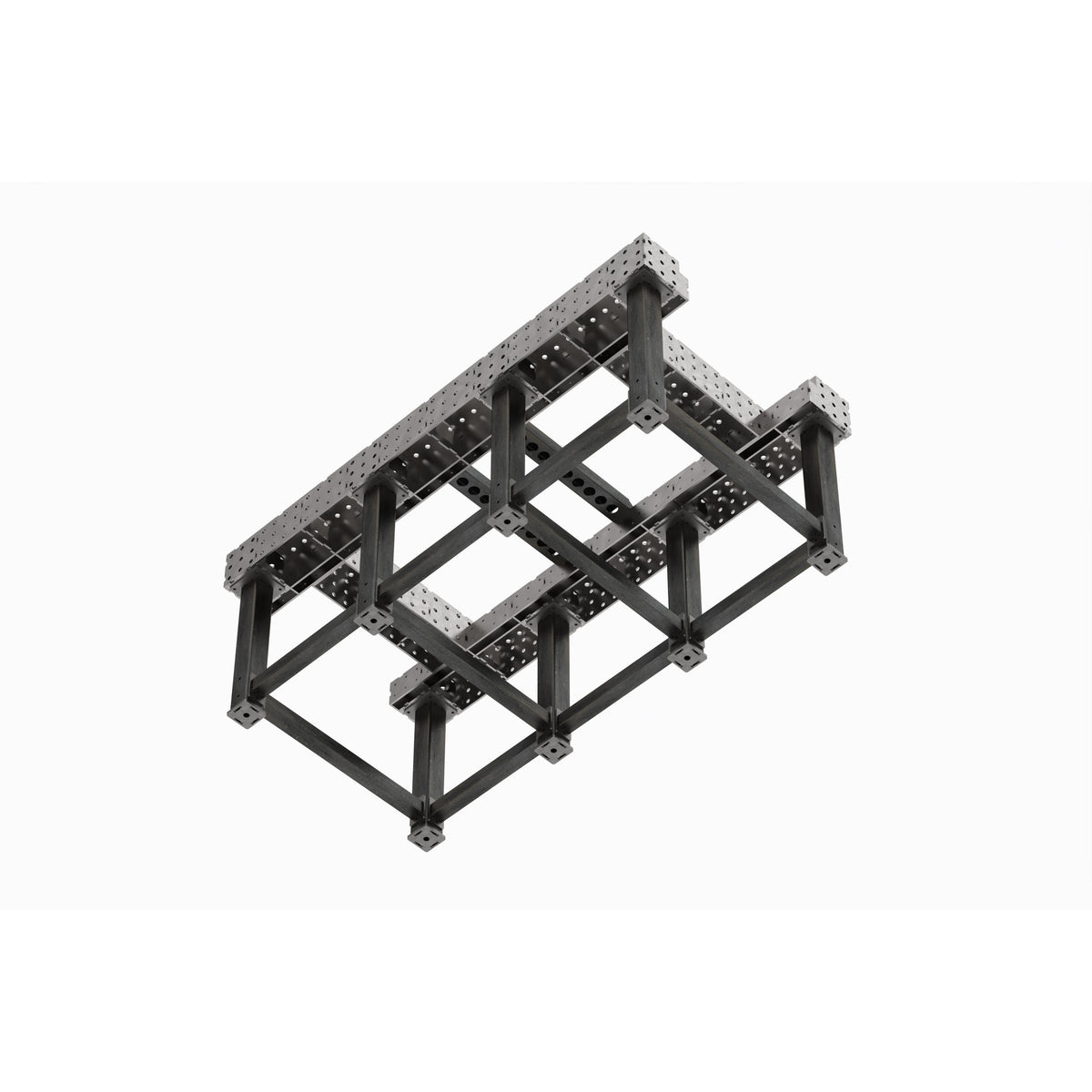

The legs are built from 3" X 3" X 3/16" wall tubing making for a very durable and stable base. Capacities vary depending on size, but these jigs can take most anything you want to put on them.

All Chassis Tables are built with high grade HRPO A36 material (3/8" top plates, 1/4" drop sides and ribbing) and use our tab and slot design for ease of assembly. Our Chassis Tables are available in a variety of sizes to fit your specific needs. But that's not all, we also offer custom sizes to ensure that our solution is the perfect fit for your project.  They are shipped ready to assemble and weld. If you prefer, we also provide a complete or partial assembly service – please contact us for competitive pricing.

These are the same fixture tables we use every day in our shop for producing large weldments. If you're building any kind of large frame, then the CertiFlat Chassis Table from WeldTables.com is the tool you need.

Unless you are making arrangements to pick up your purchase, all items require shipping.

How much is it to ship?

  • Shipping is currently flat rate and it depends on the weight. All pro tables can ship UPS to your door for a max price $99.99.
  • FabBlocks MUST ship freight, that rate is $99.99 to a commercial address or terminal or $129.99 for a residential delivery with liftgate.
  • Depending on where you live, the largest block we can put on a liftgate is 4’x8’. Some areas are limited to 90” length.

Most certiflat items are very heavy. UPS has a weight limit of 150lbs.

  • Our pro table line, and 24x36/24x48 mini blocks can be split up and ship in multiple boxes via ups.
  • The 36x48 mini block and regular fabblocks need to ship freight due to number of parts and weight.
  • Fabblocks smaller than 60" can be delivered to a residential address with a liftgate, anything larger will either need to go to a shipping terminal for you to pick up, or delivered to a commercial address with a dock/forklift.

Home based businesses and farms do not qualify for commercial status even with a forklift.

  • We will be flagged with a residential delivery and residential delivery must be purchased when adding products to your shoppinng cart.
  • The flat rate shipping offers are to the lower 48 contiguous states.
  • We also ship to alaska, puerto rico, haiwiaii, canada & mexico, contact us for a quote.

Questions?

  • Call or text us at 651.800.4877
  • Email us at Sales@weldtables.com

WHAT IS THE DIFFERENCE BETWEEN THE TABLES?

-PRO Table Tops

  • Made from HRPO A36 Steel
  • 2” tall rib support structure
  • 3/16” thick top and rib structure
  • Tab and Slot Design for easy assembly
  • Laser cut for tight tolerances
  • 16MM holes for clamps and fixtures
  • No option for expansion

-Mini-Block

  • Same material and tolerances as PRO Top
  • 4” deep rib structure and sides
  • 3 Dimensional work surfaces on 5 sides
  • Compatible with fabWings, Vise Mount, and most side mount accessories
  • Can be bolted together for near unlimited configurations!
  • Heavier duty than PRO Tops

-FabBlocks

  • Same material and tolerances as PRO’s and Mini’s
  • 6” or 8” deep rib structure (length dependent) for strength and flatness
  • Available in ¼”, 3/8” or ½” material.
  • Increased stiffness – full torsion box design.
    Available with 16MM or tapped holes. (3/8”-16 or ½”-13 thread available depending on thickness)

Note: The FabBlock and mini-block have sides with our standard hole pattern, and can be expanded by either using our fabwings or by bolting multiple blocks together. The options for sizes and configurations are essentially endless with the Mini-Block and FabBlock style tables!

WHAT LEGS DO I NEED?

  • The pro tables use one of the heavy duty leg kits.
  • Mini-Blocks, FabBlocks, and plasma tables use our FabRack.
    • The FabRacks can be purchased with or without casters.

CAN I GET A THICKER/LARGER PRO TABLE?

  • We do not offer the pro table in thicker material. Due to the rib structure design, they are limited in size (largest 3x4) and thickness.

WHY WOULD I WANT THREADED HOLES?

  • Threaded holes are very convenient for bolting your fixtures or our accessories to the table. Threaded holes are the quickest way to set things up on the table.
  • When you order threaded holes, the sides of the table will have the threaded pattern as well.
  • Pro tables are not available with threaded holes as there is not enough material. To attach accessories to the pro tables you would want to use parts FBN-2 and FBS-2, the fabnut and fabnut locating spacer washer.

DO YOU HAVE A BEGINNER PACK/ACC PACK?

  • We do have a 4-pack of squares available at a discount, parts VFS-2 and VFS-4. All other accessories are a la carte.

HOW DO THE FABNUTS/SPACERS WORK?

  • Fabnuts are threaded and have an o-ring. They insert into the 16MM hole from the underside of the table and are held in place by the o-ring.
  • The fabspacer fits in the 16MM holes on our accessories and allow you to get accurate placement with a 3/8-16 bolt.

DO YOU OFFER ASSEMBLY?

  • We do offer in house assembly by our pro welders. The cost depends on the size of table or accessory.
  • For rates contact admin@tabandslot.com

WHAT IS THE LEAD TIME?

  • It depends on our workload, currently about 4-6 weeks to ship on all tables except ProTops.
