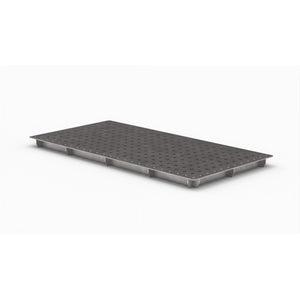

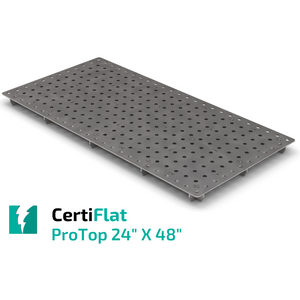

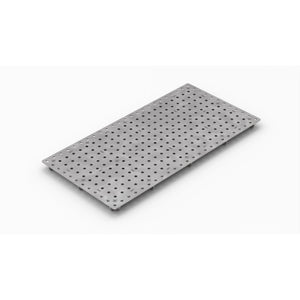

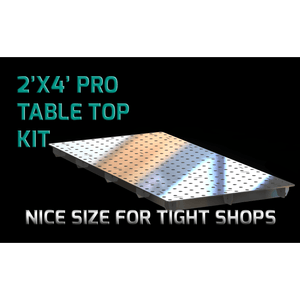

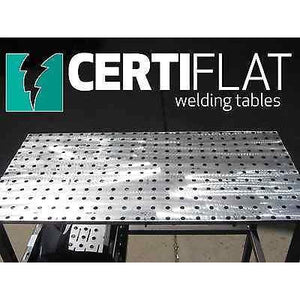

ProTop - 24"x48" - Welding Table

The Certiflat ProTop Welding Table - This welding table is designed specifically for welders, and is the same tables used in our shop daily and by OEM manufacturers across the USA and Canada. These kits are built with tough 3/16" hot rolled pickled & oiled steel, using state-of-the-art CNC laser cutting technology for an exceptional fit-up. Our proprietary tab & slot methodology for building stiff, accurate welding fixtures has been proven in real-world manufacturing settings for over 15 years.

Features:

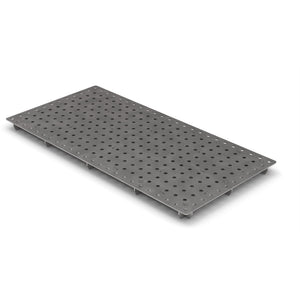

Dimensions: 24" x 48" Welding Surface - 1,152 Sq. Inches of usable surface area.

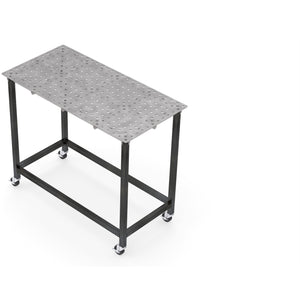

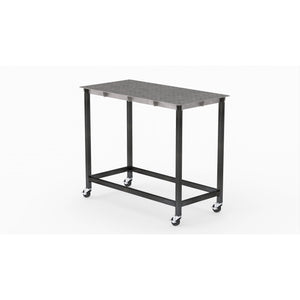

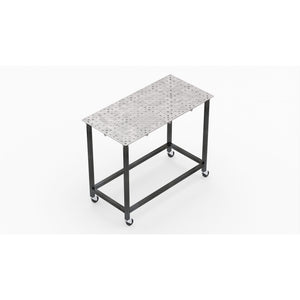

  • Integrates with the Heavy Duty Leg Kit - PN: LK2448-U-K
    • Sold Separately

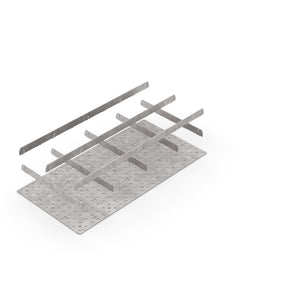

  • Engineered tab & slot stiffening ribs for a guaranteed flat surface.
  • Proprietary "Heat Control Design" to eliminate warping during assembly.
  • High precision with +/- .003" on all parts included in the kit.
  • 16mm holes on 2" centers work with most fixturing clamps.
  • Flat to +/- .015" per 12 inches when assembled according to instructions.
  • Specially designed weld points put the heat in the middle of the tabs and eliminate weld pull.

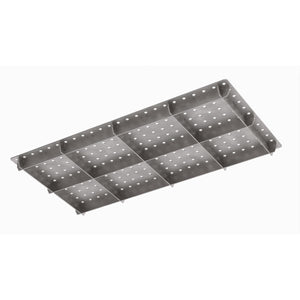

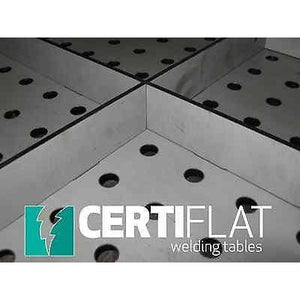

Our CNC sheet laser parts go together fast and square, using the tab and slot methodology throughout to make building a quality tool that lasts forever as simple as possible. The internal webbing works to force the table flat during assembly and keeps it that way for years of trouble-free and accurate welding. The 16mm holes on 2" centers fit most industry standard welding clamps and allow for infinite fixturing positions. Unlike other welding tables, our tops are designed and manufactured to ensure they're flat from the beginning and stay that way for the life of the tool.

Follow our assembly instructions and we guarantee your new welding table will be flat.



Assembly Video can be found here: https://www.youtube.com/watch?v=E_SyzcCzh74

Unless you are making arrangements to pick up your purchase, all items require shipping.

How much is it to ship?

  • Shipping is currently flat rate and it depends on the weight. All pro tables can ship UPS to your door for a max price $99.99.
  • FabBlocks MUST ship freight, that rate is $99.99 to a commercial address or terminal or $129.99 for a residential delivery with liftgate.
  • Depending on where you live, the largest block we can put on a liftgate is 4’x8’. Some areas are limited to 90” length.

Most certiflat items are very heavy. UPS has a weight limit of 150lbs.

  • Our pro table line, and 24x36/24x48 mini blocks can be split up and ship in multiple boxes via ups.
  • The 36x48 mini block and regular fabblocks need to ship freight due to number of parts and weight.
  • Fabblocks smaller than 60" can be delivered to a residential address with a liftgate, anything larger will either need to go to a shipping terminal for you to pick up, or delivered to a commercial address with a dock/forklift.

Home based businesses and farms do not qualify for commercial status even with a forklift.

  • We will be flagged with a residential delivery and residential delivery must be purchased when adding products to your shoppinng cart.
  • The flat rate shipping offers are to the lower 48 contiguous states.
  • We also ship to alaska, puerto rico, haiwiaii, canada & mexico, contact us for a quote.

Questions?

  • Call or text us at 651.800.4877
  • Email us at Sales@weldtables.com

WHAT IS THE DIFFERENCE BETWEEN THE TABLES?

-PRO Table Tops

  • Made from HRPO A36 Steel
  • 2” tall rib support structure
  • 3/16” thick top and rib structure
  • Tab and Slot Design for easy assembly
  • Laser cut for tight tolerances
  • 16MM holes for clamps and fixtures
  • No option for expansion

-Mini-Block

  • Same material and tolerances as PRO Top
  • 4” deep rib structure and sides
  • 3 Dimensional work surfaces on 5 sides
  • Compatible with fabWings, Vise Mount, and most side mount accessories
  • Can be bolted together for near unlimited configurations!
  • Heavier duty than PRO Tops

-FabBlocks

  • Same material and tolerances as PRO’s and Mini’s
  • 6” or 8” deep rib structure (length dependent) for strength and flatness
  • Available in ¼”, 3/8” or ½” material.
  • Increased stiffness – full torsion box design.
    Available with 16MM or tapped holes. (3/8”-16 or ½”-13 thread available depending on thickness)

Note: The FabBlock and mini-block have sides with our standard hole pattern, and can be expanded by either using our fabwings or by bolting multiple blocks together. The options for sizes and configurations are essentially endless with the Mini-Block and FabBlock style tables!

WHAT LEGS DO I NEED?

  • The pro tables use one of the heavy duty leg kits.
  • Mini-Blocks, FabBlocks, and plasma tables use our FabRack.
    • The FabRacks can be purchased with or without casters.

CAN I GET A THICKER/LARGER PRO TABLE?

  • We do not offer the pro table in thicker material. Due to the rib structure design, they are limited in size (largest 3x4) and thickness.

WHY WOULD I WANT THREADED HOLES?

  • Threaded holes are very convenient for bolting your fixtures or our accessories to the table. Threaded holes are the quickest way to set things up on the table.
  • When you order threaded holes, the sides of the table will have the threaded pattern as well.
  • Pro tables are not available with threaded holes as there is not enough material. To attach accessories to the pro tables you would want to use parts FBN-2 and FBS-2, the fabnut and fabnut locating spacer washer.

DO YOU HAVE A BEGINNER PACK/ACC PACK?

  • We do have a 4-pack of squares available at a discount, parts VFS-2 and VFS-4. All other accessories are a la carte.

HOW DO THE FABNUTS/SPACERS WORK?

  • Fabnuts are threaded and have an o-ring. They insert into the 16MM hole from the underside of the table and are held in place by the o-ring.
  • The fabspacer fits in the 16MM holes on our accessories and allow you to get accurate placement with a 3/8-16 bolt.

DO YOU OFFER ASSEMBLY?

  • We do offer in house assembly by our pro welders. The cost depends on the size of table or accessory.
  • For rates contact admin@tabandslot.com

WHAT IS THE LEAD TIME?

  • It depends on our workload, currently about 4-6 weeks to ship on all tables except ProTops.
Customer Reviews
4.9 Based on 27 Reviews
5 ★
93%
25
4 ★
4%
1
3 ★
0%
0
2 ★
3%
1
1 ★
0%
0
Customer Photos
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:

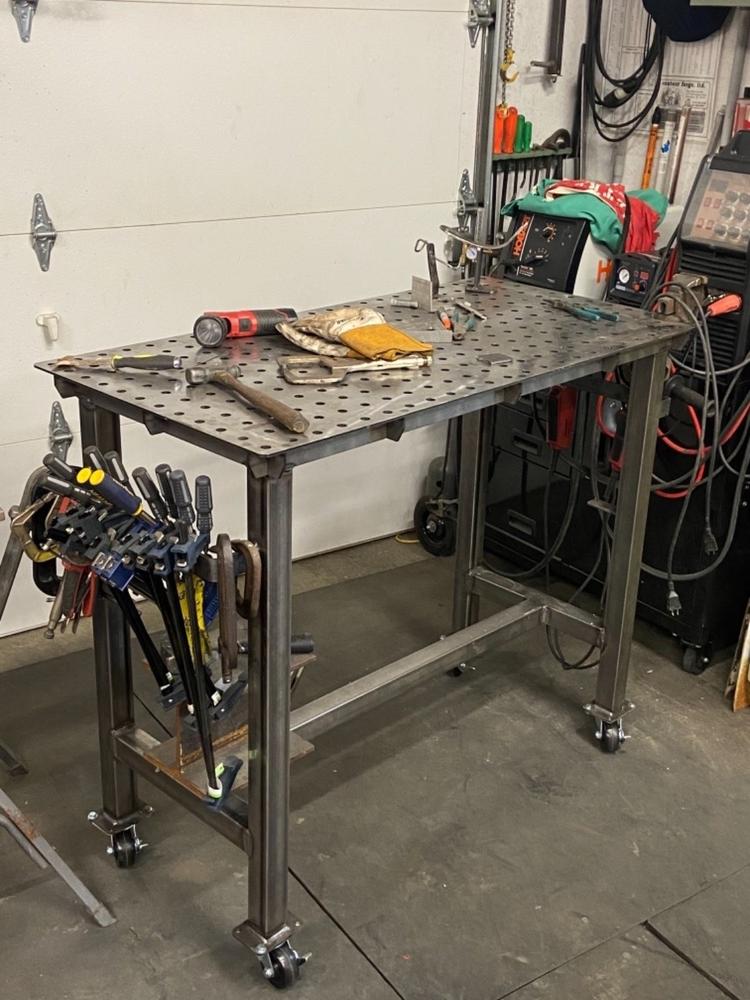

    SK
    02/12/2021
    Steve K.
    United States United States

    Easy first mig project.

    Purchased this as a first project after teaching myself to mig weld. Came out exactly as it should.... perfectly flat.

    CertiFlat ProTop - 24x48 - Welding Table Review
    SK
    01/23/2021
    Steven K.
    United States United States

    2x4 pro

    I am extremely happy with my certiflat weld table. The idea of a quality and affordable diy weld table delivered to my door is awesome. I highly recommend certiflat for anyone looking for a weld table

    CertiFlat ProTop - 24x48 - Welding Table ReviewCertiFlat ProTop - 24x48 - Welding Table Review
    BB
    02/02/2024
    Bradley B.
    United States United States

    No directions, followed YouTube.

    Assembly was straight forward no instructions given watched videos on YouTube. After doing everything to make sure it was flat once it was flipped over there was still a bow in the top. So the table is not flat, but works as long as it doesn't have to be perfect.

    WB
    02/02/2024
    William B.
    United States United States

    Sadly not flat

    The cross pieces actually pulled the surface of the table to concave when welded flat to the top. It took many tries to get a flat surface - clamping adjusting welding, grind welds, readjust, reweld.. rinse and repeat.

    SG
    03/04/2023
    Steve g.
    United States United States

    Welding table

    I have a small workshop.great for my needs.
